• Product Description and Addition Information :

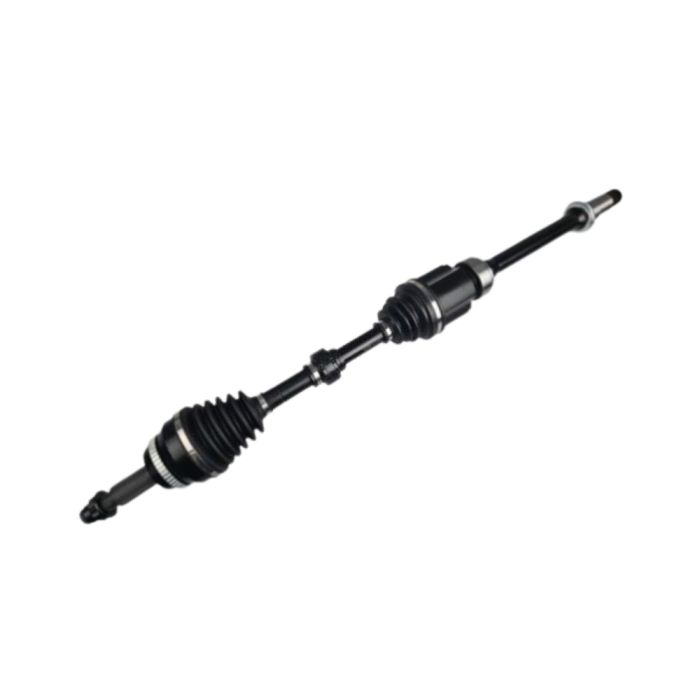

  • Front Right CV Joint Drive Shaft for Toyota Kluger Highlander GSU40 GSU50 GSU55

  • LSI Auto Parts

    Vehicle Fitment

    • Toyota Kluger GSU40 GSU50 GSU55 3.5L FWD AWD AT (08/2007 - 03/2021) Right Includes Sub-models Altitude KX-R KX-S GX GXL Grande
    • Toyota Highlander GSU55 GSU55R 3.5L AWD AT (03/2014 - 10/2016) Right Includes Sub-models GX GXL Limited Limited ZR

    Sizing and Specifications

    • Length (Compressed): 992mm
    • Spline Count - Outer/Wheel Side: 30T
    • Spline Count - Inner/Diff Side: 24T
    • ABS Ring Teeth: 48
    • Outboard Joint Type: Ball
    • Inboard Joint Type: Tripod
    • Bearing Outer Diameter on Extension Shaft: 72mm
    • Extension Shaft Length From Inside of Bearing Face: 354mm
    • Extension Shaft Bearing Width: 23mm
    • Hub Nut Style: M22 x 1.5

    What's Included

    • 1 x CV Shaft
