Important Note : READ Before Purchase

• Product Description and Addition Information :

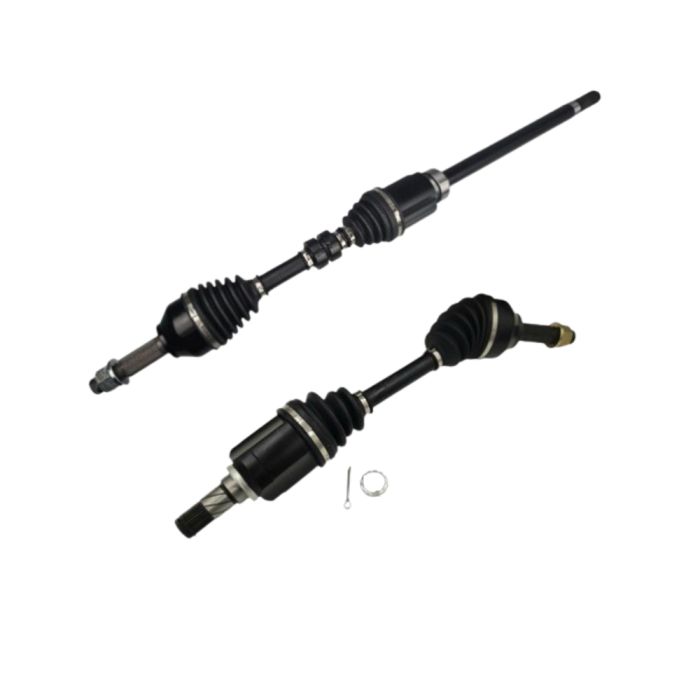

  • PAIR Front CV Joint Axle Drive Shafts for Nissan Dualis J10 X-Trail T31 AWD MT

  • LSI Auto Parts

    Vehicle Fitment

    • Nissan Dualis J10 FBNJ10 JBNJ10 2.0L MR20DE AWD MT (12/2007 - 01/2016) OE Ext Shaft - Inside Bearing Face to End 345-347mm Sub-Models Includes ST +2 ST Ti Ti-L +2 Ti +2 Ti-L
    • Nissan X-Trail T31 NT31 2.0L MR20DE 4WD MT (08/2007 - 03/2015) Sub-Models Includes 20S 4WD 20ST 4WD 20X 4WD 20XT 4WD 20XTT 4WD AXIS 4WD DRIVING GEAR 4WD

    Sizing and Specifications

    • Right Length (Compressed): 1003.5mm
    • Spline Count - Outer/Wheel Side: 29T
    • Spline Count - Inner/Diff Side: 29T
    • Outboard Joint Type: Ball
    • Inboard Joint Type: Tripod
    • Bearing Outer Diameter on Extension Shaft: 62mm
    • Extension Shaft Length From Inside of Bearing Face: 426mm
    • Bearing Width: 22.5mm
    • Hub Nut Style: M24 x 1.5
    • Left Length: 620mm
    • Spline Count Outer/Wheel Side: 29T
    • Spline Count Inner/Diff Side: 29T
    • Shaft Diameter: 27mm

    What's Included

    • 2 x CV Shafts
