Important Note : READ Before Purchase

• Product Description and Addition Information :

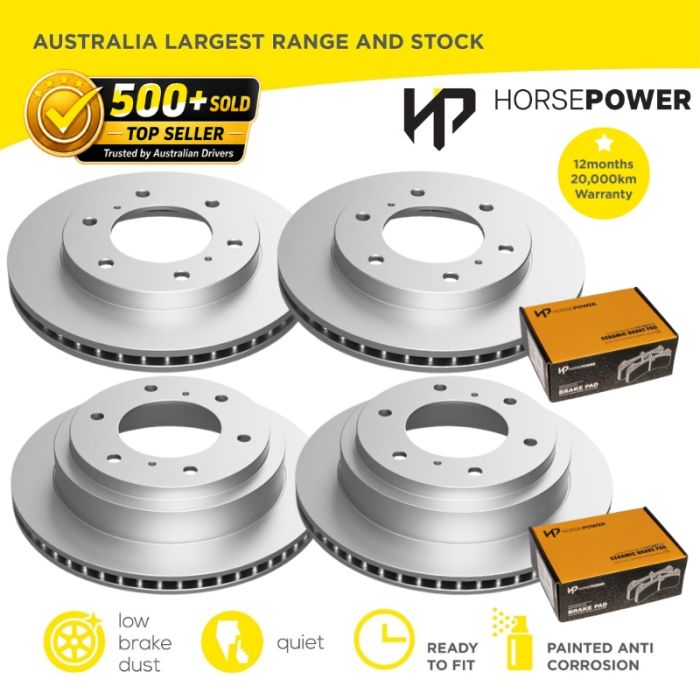

  • Full Set F+R Horsepower Brake Disc Rotors & Ceramic Brake Pads Kit

    The Full Set F+R Horsepower Brake Disc Rotors and Ceramic Brake Pads Kit is a premium, ultra-clean braking upgrade engineered for the heavy-duty demands of the Mitsubishi Pajero NM–NP series (2000–2006) as well as the 2007–2009 NS Short Wheel Base (SWB) 3-Door models. This fully matched setup pairs high-density ceramic friction technology with protective-coated metallurgy to provide a smooth, exceptionally quiet, and low-dust driving experience for daily commuting, highway touring, and trail driving.

    ⚠️ CRITICAL FITMENT NOTE FOR NS MODELS: This kit is specifically designed for the NS Short Wheel Base (SWB) 3-Door variants which carry over the 290mm front / 300mm rear braking setup. It WILL NOT fit NS Long Wheel Base (LWB) 5-Door models, which use a larger 332mm braking system.

    Product Description

    Upgrade your vehicle's braking performance with this complete, direct-replacement front and rear package. By combining Horsepower Ultra-Premium Ceramic Brake Pads with matching Horsepower Geomet-Coated Disc Rotors, this kit ensures perfectly balanced wear profiles, predictable pedal modulation, and pristine wheels.

    • Ultra-Low Dust Ceramic Formula: Engineered with an advanced ceramic matrix that produces virtually zero dark carbon dust, keeping your alloy wheels cleaner for significantly longer.
    • Advanced Rust Protection: Every rotor features a premium silver Geomet anti-corrosion coating on the hubs, outer edges, and internal cooling vanes to prevent ugly rust buildup during water crossings.
    • Whisper-Quiet Braking: Premium rubberized vulcanized shims work alongside chamfered and slotted pad designs to completely isolate and eliminate high-frequency brake squeal.
    • Thermal Stability: High-carbon rotor metallurgy works in total synergy with the ceramic friction material to dissipate operational heat smoothly up to 550°C, protecting against brake fade and warping.

    ---

    Vehicle Application Model List

    Fits the following Mitsubishi Pajero models equipped with standard 4WD configurations:

    Pajero NM & NP Series (05/2000 – 12/2006) - All Models

    • 3.5L V6 Petrol (6G74 SOHC/DOHC) – 2000 to 2006
    • 3.8L V6 Petrol (6G75 SOHC) – 2003 to 2006
    • 2.8L Turbo Diesel (4M40) – 2000 to 2002
    • 3.2L Di-D Turbo Diesel (4M41) – 2000 to 2006
    • 2.5L TDi Turbo Diesel (4D56) – 2000 to 2006

    Pajero NS Series (2007 – 2009) - Short Wheel Base (SWB) 3-Door ONLY

    • 3.2L Di-D Turbo Diesel SWB 3-Door (4M41 / V88W Layout) – 2007 to 2009
    • 3.8L V6 Petrol SWB 3-Door (6G75 / V87W Layout) – 2007 to 2009

    ---

    Technical Specifications

    • Front Rotors: 289mm Diameter | Vented | 6-Stud | 94mm Centre Hub
    • Rear Rotors: 300mm Diameter | Vented | 6-Stud | 94mm Centre Hub
    • Front Pads Set: 4 Premium Ceramic Pads (139mm × 58mm × 15mm)
    • Rear Pads Set: 4 Asymmetric Ceramic Pads (2 Inner: 112mm × 45mm × 15mm | 2 Outer: 91mm × 45mm × 15mm)
• Disc Rotor Dimension:

  Diameter	289mm/300 mm
  Height	46mm/73 mm
  Max. Thickness	25.8mm/22 mm
  Min. Thickness	24.4mm/20 mm
  Centre Holes	94mm/94 mm
  No. of Studs	6/6
  Vented/Solid	V/V

• Disc Rotor Dimension:

  Length	139/112/91 mm
  Height	58/45 mm
  Thickness	15/15 mm
