Important Note : READ Before Purchase

• Product Description and Addition Information :

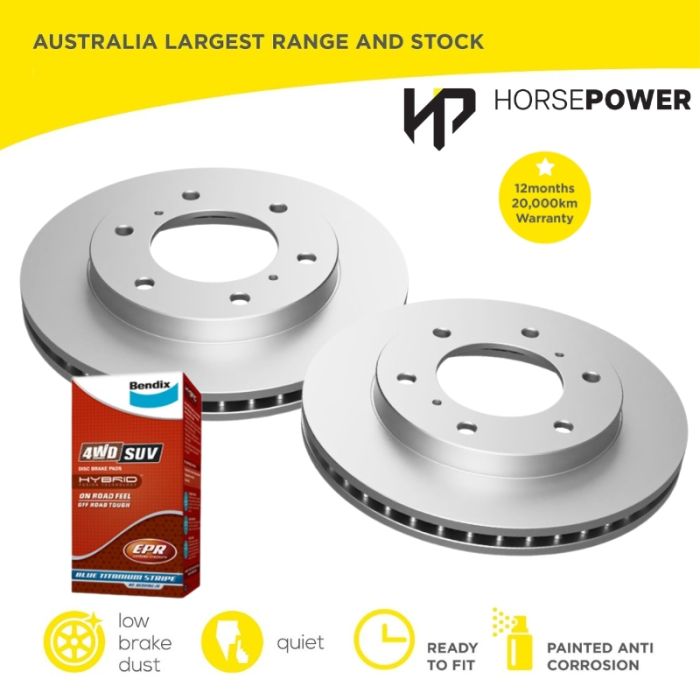

  • Front Axle Set: Horsepower Brake Disc Rotors & Bendix 4WD Brake Pads Kit

    This premium Front Axle Horsepower Brake Disc Rotors and Bendix 4WD Brake Pads Kit is a heavy-duty, direct-replacement braking upgrade engineered for the front axle of select Mitsubishi Pajero 4WD models. By matching advanced heavy-duty friction compounds with robust, high-carbon metallurgy, this front set delivers enhanced thermal recovery, dependable pedal bite, and reliable performance under heavy payloads, towing, or trail driving.

    ⚠️ CRITICAL FITMENT NOTE FOR NS MODELS: This front kit is explicitly designed for the NS Short Wheel Base (SWB) 3-Door variants which carry over the 290mm front brake architecture. It WILL NOT fit NS Long Wheel Base (LWB) 5-Door models, which use a larger 332mm front braking setup.

    Core Performance Features

    Restore frontline stopping power and eliminate steering wheel judder under extreme braking conditions. The precision matching between Bendix's 4WD pad compounds and Horsepower's thermal rotor design maximizes friction efficiency and extends operational life.

    • No Bedding-In Required: Bendix's signature Blue Titanium Stripe transfers onto the rotor face during the first few stops, giving immediate pedal bite right out of the workshop without a complex bedding cycle.
    • Advanced Rust Protection: Both front rotors feature a premium silver Geomet anti-corrosion coating across the hub face, outer edges, and internal cooling vents to resist rust binding and structural degradation from mud or water crossings.
    • Extreme Front Heat Management: High-carbon rotor metallurgy combines with pillar ventilation to absorb and rapidly dissipate high surface temperatures up to 550°C, ensuring the Bendix pads remain within their optimal operating window to prevent brake fade.
    • Noise and Vibration Isolation: Advanced fibre-impregnated rubber steel shims on the Bendix pads work in harmony with the dynamically balanced rotors to suppress high-frequency vibrations before they reach the cabin.

    ---

    Vehicle Application Model List

    Fits the front axle of the following Mitsubishi Pajero models equipped with standard 4WD configurations:

    Pajero NM & NP Series (05/2000 – 12/2006) - All Models

    • 3.5L V6 Petrol (6G74 SOHC/DOHC) – 2000 to 2006
    • 3.8L V6 Petrol (6G75 SOHC) – 2003 to 2006
    • 2.8L Turbo Diesel (4M40) – 2000 to 2002
    • 3.2L Di-D Turbo Diesel (4M41) – 2000 to 2006
    • 2.5L TDi Turbo Diesel (4D56) – 2000 to 2006

    Pajero NS Series (2007 – 2009) - Short Wheel Base (SWB) 3-Door ONLY

    • 3.2L Di-D Turbo Diesel SWB 3-Door (4M41 / V88W Layout) – 2007 to 2009
    • 3.8L V6 Petrol SWB 3-Door (6G75 / V87W Layout) – 2007 to 2009

    ---

    Technical Specifications

    • Placement on Vehicle: Front Axle Only (Left and Right Sides)
    • Front Rotors: 290mm Diameter | Vented | 6-Stud Pattern | 94mm Centre Hub Hole
    • Front Pads Set: 1 Axle Set / 4 Bendix Extreme Heavy Duty 4WD Pads (139mm × 58mm × 15mm)
• Disc Rotor Dimension:

  Diameter	289 mm
  Height	46 mm
  Max. Thickness	25.8 mm
  Min. Thickness	24.4 mm
  Centre Holes	94 mm
  No. of Studs	6
  Vented/Solid	V

• Disc Rotor Dimension:

  Length	139 mm
  Height	58 mm
  Thickness	15 mm
