Important Note : READ Before Purchase

• Product Description and Addition Information :

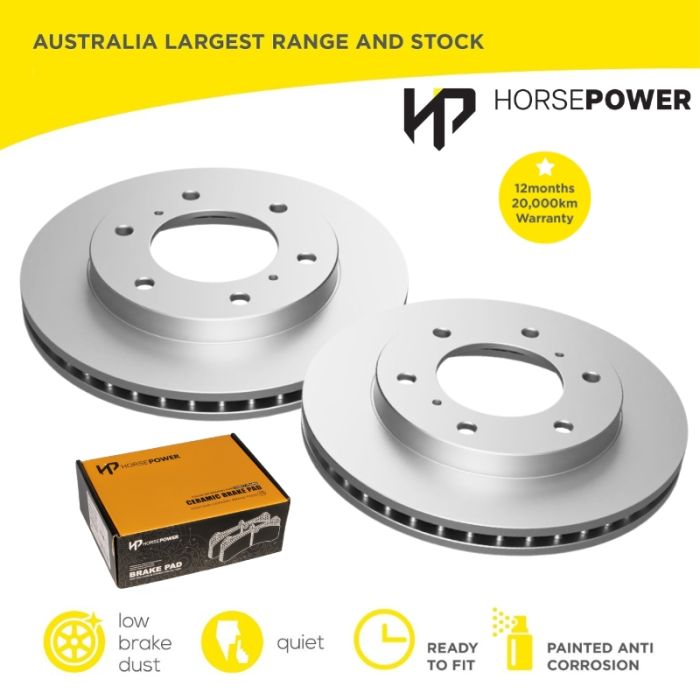

  • Front Axle Set: Horsepower Brake Disc Rotors & Ceramic Brake Pads Kit

    This premium Front Axle Horsepower Brake Disc Rotors and Ceramic Brake Pads Kit is a fully matched, direct OE-replacement upgrade designed for the heavy-duty demands of 4WD vehicles. Engineered specifically for the front axle of select Mitsubishi Pajero models, this combination pairs high-density ceramic friction material with protective-coated metallurgy to deliver smooth, exceptionally quiet, and low-dust stopping power.

    ⚠️ CRITICAL FITMENT NOTE FOR NS MODELS: This front kit is explicitly designed for the NS Short Wheel Base (SWB) 3-Door variants which feature the 290mm front brake layout. It WILL NOT fit NS Long Wheel Base (LWB) 5-Door models, which use a larger 332mm front braking setup.

    Core Performance Features

    Restore ultimate front-end stopping power and eliminate steering wheel vibration under heavy loads. Because the pads and rotors are designed by Horsepower to work together, they ensure perfectly balanced surface wear, predictable pedal modulation, and extended component life.

    • Ultra-Low Dust Ceramic Formulation: High-density ceramic brake pads produce virtually zero dark carbon dust, keeping your alloy wheels noticeably cleaner for longer.
    • Advanced Rust Protection: Both front rotors feature a premium silver Geomet anti-corrosion coating across the hubs, outer edges, and internal cooling vanes to prevent rust binding and structural degradation.
    • Whisper-Quiet Braking: Premium rubberized vulcanized shims on the brake pads work with chamfered and slotted friction faces to actively isolate and dampen high-frequency brake squeal.
    • Exceptional Heat Management: High-carbon rotor metallurgy works in total synergy with the ceramic pad compound to absorb and dissipate extreme front operating temperatures, preventing structural warping and brake fade.

    ---

    Vehicle Application Model List

    Fits the front axle of the following Mitsubishi Pajero models equipped with standard 4WD configurations:

    Pajero NM & NP Series (05/2000 – 12/2006) - All Models

    • 3.5L V6 Petrol (6G74 SOHC/DOHC) – 2000 to 2006
    • 3.8L V6 Petrol (6G75 SOHC) – 2003 to 2006
    • 2.8L Turbo Diesel (4M40) – 2000 to 2002
    • 3.2L Di-D Turbo Diesel (4M41) – 2000 to 2006
    • 2.5L TDi Turbo Diesel (4D56) – 2000 to 2006

    Pajero NS Series (2007 – 2009) - Short Wheel Base (SWB) 3-Door ONLY

    • 3.2L Di-D Turbo Diesel SWB 3-Door (4M41 / V88W Layout) – 2007 to 2009
    • 3.8L V6 Petrol SWB 3-Door (6G75 / V87W Layout) – 2007 to 2009

    ---

    Technical Specifications

    • Placement on Vehicle: Front Axle Only
    • Front Rotors: 290mm Diameter | Vented | 6-Stud Pattern | 94mm Centre Hub Hole
    • Front Pads Set: 1 Axle Set / 4 Premium Ceramic Pads (139mm × 58mm × 15mm)
• Disc Rotor Dimension:

  Diameter	289 mm
  Height	46 mm
  Max. Thickness	25.8 mm
  Min. Thickness	24.4 mm
  Centre Holes	94 mm
  No. of Studs	6
  Vented/Solid	V

• Disc Rotor Dimension:

  Length	139 mm
  Height	58 mm
  Thickness	15 mm
