• Product Description and Addition Information :
  • 2 x Disc Rotors for LH and RH

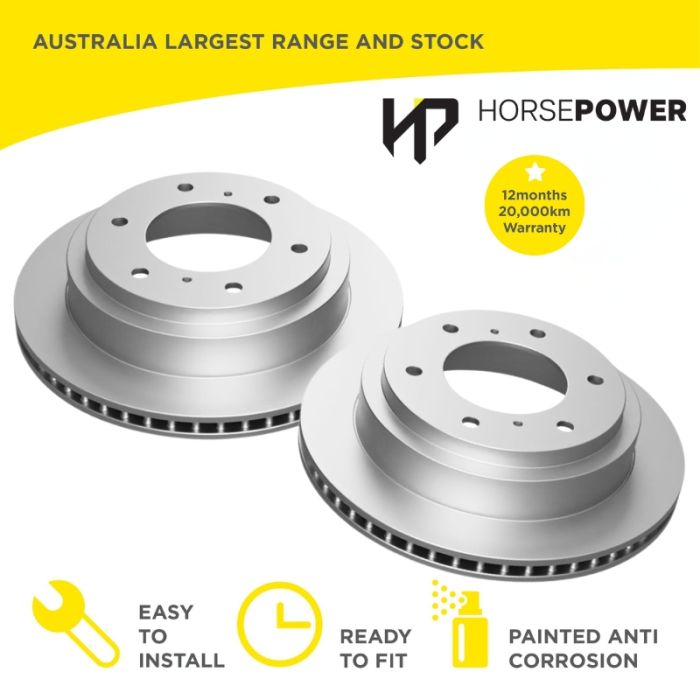

  • Rear Pair Horsepower Brake Disc Rotors (300mm Vented)

    This premium Rear Pair of Horsepower Brake Disc Rotors is a direct OE-specification replacement engineered specifically for the demanding conditions faced by 4WD vehicles. Built using advanced metallurgy and finished with a defensive rust barrier, this rear pair delivers stable thermal management, reliable handbrake shoe integration, and precise structural balance for your wagon or short-wheelbase platform.

    ⚠️ CRITICAL FITMENT NOTE FOR NS MODELS: This pair is explicitly designed for the NS Short Wheel Base (SWB) 3-Door variants which share the 300mm rear layout. It WILL NOT fit NS Long Wheel Base (LWB) 5-Door models, which use larger 332mm rear rotors.

    Core Performance Features

    Restore your vehicle's original braking performance and eliminate rear brake shudder under heavy loads. These Horsepower rotors are manufactured to strict structural tolerances, making them an ideal match for both premium ceramic and heavy-duty semi-metallic brake pads.

    • Advanced Rust Protection: Features a specialized silver Geomet anti-corrosion coating on the hub face, outer edges, and internal cooling vanes to prevent rust binding and structural degradation during water crossings.
    • High-Carbon Metallurgy: Cast from high-carbon iron alloy to optimize thermal conductivity, allowing the disc to absorb and scatter friction heat rapidly to prevent structural warping or heat cracking.
    • Precision Internal Drum Finish: The internal hat is machined to exact tolerances for a perfect, seamless match with your vehicle's existing original equipment handbrake shoes.
    • Dynamically Balanced Finish: Every rotor undergoes strict electronic balancing during the final machining phase to remove microscopic weight variations and eliminate brake judder.

    ---

    Vehicle Application Model List

    Fits the rear axle of the following Mitsubishi Pajero models equipped with standard 4WD configurations:

    Pajero NM & NP Series (05/2000 – 12/2006) - All Models

    • 3.5L V6 Petrol (6G74 SOHC/DOHC) – 2000 to 2006
    • 3.8L V6 Petrol (6G75 SOHC) – 2003 to 2006
    • 2.8L Turbo Diesel (4M40) – 2000 to 2002
    • 3.2L Di-D Turbo Diesel (4M41) – 2000 to 2006
    • 2.5L TDi Turbo Diesel (4D56) – 2000 to 2006

    Pajero NS Series (2007 – 2009) - Short Wheel Base (SWB) 3-Door ONLY

    • 3.2L Di-D Turbo Diesel SWB 3-Door (4M41 / V88W Layout) – 2007 to 2009
    • 3.8L V6 Petrol SWB 3-Door (6G75 / V87W Layout) – 2007 to 2009

    ---

    Technical Specifications

    • Placement on Vehicle: Rear Axle (Left & Right Pair)
    • Rotor Type: Vented
    • Diameter: 300mm
    • Original Thickness: 22mm
    • Minimum Service Thickness: 20.4mm
    • Stud Count: 6-Stud Pattern
    • Centre Hub Hole: 94mm
    • Internal Handbrake Drum Diameter: 190mm
• Disc Rotor Dimension:

  Diameter	300 mm
  Height	73 mm
  Max. Thickness	21.8 mm
  Min. Thickness	20.4 mm
  Centre Holes	94 mm
  No. of Studs	6
  Vented/Solid	V
